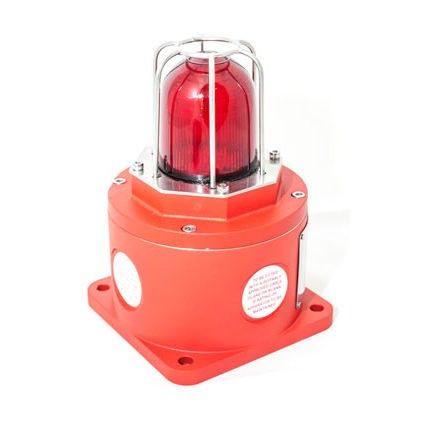

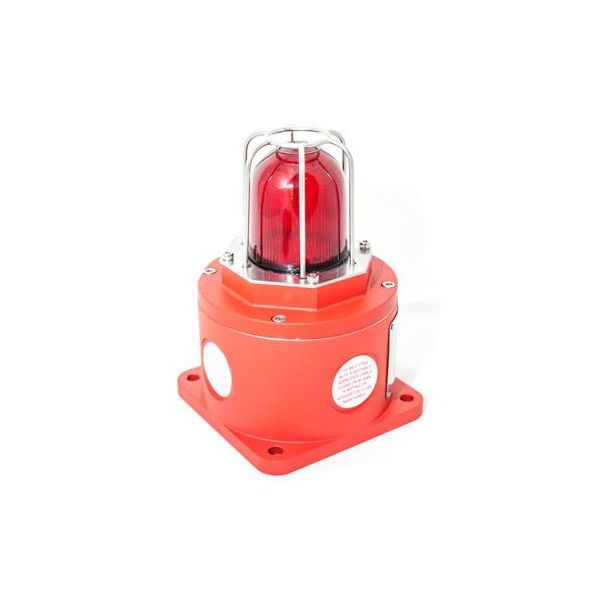

10 Joule Explosion Proof Xenon Beacon in Stainless Steel (AC)
This beacon is certified for use in Atex/explosive atmosphere, zone 1 & 2 for gas and zone 21 & 22 for dust. It is dedicated for Oil & Gas,chemical, petrochemical, pharmacy industries, marine and Offshore applications. It’s designed for corrosive environnements and hazardous area. The BC125 can also be used as status light.
This beacon can be delivered with two different light sources; LED with steady, rotary, fixed or blinking led of different powers.
Flashing with XENON tube of different powers.
Four flashing frequencies are selectable.
Optional: it is possible to control the beacon via a telephone line.
Housing is made of stainless steel 316L covered with UV resistant paint, the lens is
made of borosilicate glass.
A complete range of accessories is available to customize a products.
email sales@engineeeingshop.ng for information on avialble options.
This beacon can be delivered with two different light sources; LED with steady, rotary, fixed or blinking led of different powers.
Flashing with XENON tube of different powers.
Four flashing frequencies are selectable.
Optional: it is possible to control the beacon via a telephone line.
Housing is made of stainless steel 316L covered with UV resistant paint, the lens is
made of borosilicate glass.
A complete range of accessories is available to customize a products.
email sales@engineeeingshop.ng for information on avialble options.
₦922,312.00
In stock
SKU
ESBC125X10JAC
Part No
BC125X10JAC
Stainless steel BC 125 Ex beacon / status light certified for use and installation in Zone 1 and Zone 2 areas with gas groups of IIA, IIB, IIC.
Operating Temperature: T6 = – 40°C + 55°C , T5 = – 40°C + 60°C, T4 = – 40°C + 70°C
Material: enclosure in Stainless Steel
IP rating: IP66/67
Enclosure Colour: Red ,Blue, Black, others colour on customer request
Lens: tempered glass colour Red, Yellow (Amber), Blue, Green, Clear.
Optional: lens guard in stainless steel
Power Supply: 12-48V DC/AC or 100-240V AC
Power Consumption: Xenon:2 Joule: 4W (Max); 5J: 10W (Max);10J: 15W (Max);15J: 20W(Max); 21J: 25W(Max); LED:5 W
Standard: EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31
Marking: Ex d IIC T4~T6 Gb, Ex tb IIIC T135°C~T85°C, Ex II GD
Certification: Nemko 13 ATEX 1561X, IECEx NEM 13.0030X
Cable Entry: 4x M20 – M25**, 1/2?NPT**, 3/4?NPT** or other (specify)
Other: Telephone Initiated Function Available
email :sales@engineeringshop.ng for information on available options.
Operating Temperature: T6 = – 40°C + 55°C , T5 = – 40°C + 60°C, T4 = – 40°C + 70°C
Material: enclosure in Stainless Steel
IP rating: IP66/67
Enclosure Colour: Red ,Blue, Black, others colour on customer request
Lens: tempered glass colour Red, Yellow (Amber), Blue, Green, Clear.
Optional: lens guard in stainless steel
Power Supply: 12-48V DC/AC or 100-240V AC
Power Consumption: Xenon:2 Joule: 4W (Max); 5J: 10W (Max);10J: 15W (Max);15J: 20W(Max); 21J: 25W(Max); LED:5 W
Standard: EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31
Marking: Ex d IIC T4~T6 Gb, Ex tb IIIC T135°C~T85°C, Ex II GD
Certification: Nemko 13 ATEX 1561X, IECEx NEM 13.0030X
Cable Entry: 4x M20 – M25**, 1/2?NPT**, 3/4?NPT** or other (specify)
Other: Telephone Initiated Function Available
email :sales@engineeringshop.ng for information on available options.
| Manufacturer | EX-TECH |
|---|---|
| Part No | BC125X10JAC |
