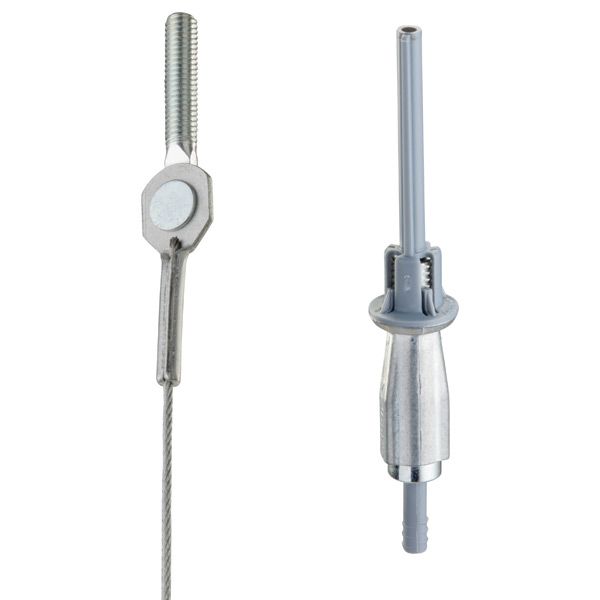

nVent CADDY Speed Link SLS with Threaded Stud End SLS2L3SEM8

Part Number; SLS2L3SEM8
Article Number; 196757
Material; Steel
Polypropylene
Zinc Alloy
Finish; Electrogalvanized
Static Load Safety Factor; 5:1
Complies With; SMACNA HVAC-DCS
Wire Rope Diameter; 2 mm
Wire Rope Length; 3 m
Rod Size (RS); M8
Screw Length (L); 45 mm
Static Load (F); 270 N
Thread Size (TS); M8
Height 1 (H1); 53 mm
Height 2 (H2); 43.5 mm
Width (W); 16 mm
Thickness (T); 4 mm Max
Hole Size (HS); 8 – 10 mm
Slot Size (SS); 8 x 6.5 mm - 8 x 10 mm
Certifications; cULus
Part Number; SLS2L3SEM8
Standard Packaging Quantity; 10 pc
UPC; 78285693182
EAN-13; 8711893158212
