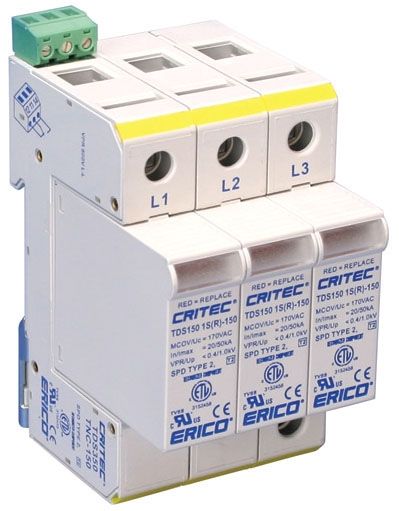

*- TD Technology with thermal disconnect protection
- Compact design fits into DIN distribution panel boards and motor control centers
- Indication flags and voltage-free contacts provide remote status monitoring
- Separate plug and base design facilitates replacement of a failed surge module
- 50kA 8/20μs maximum surge rating provides protection suitable for sub-distribution panels and a long operational life
- Available in various operating voltages to suit most common power distribution systems
- CE, UL® 1449 Edition 3 Listed
Nominal System Voltage (Un) - 120 -150 VAC Max Continuous Operating Voltage (Uc) - 170/295 VAC Stand-off Voltage - 240/415 VAC Frequency - 0 – 100 Hz Short Circuit Current Rating (SCCR) - 200 kA Back-Up Overcurrent Protection - 125 AgL, if supply > 100 A Technology - TD technology with thermal disconnect Max Discharge Current (Imax), Per Mode - 50.0 kA 8/20 μs Nominal Discharge Current (In) - 25 kA 8/20 μs Protection Modes - L-N Voltage Protection Level (Up) - 400 V @ 3 kA | 1.0 kV @ In Status - N/O, N/C Change-over contact, 250 V/0.5 A, max 1.5 mm² (#14 AWG) terminals | Mechanical flag / remote contacts Dimensions H x D x W: mm (in) - 90 x 68 x 53 (3.54 x 2.68 x 2.07) Module Width - 3 M Weight: kg (lbs) - 0.36 (0.79) Enclosure - DIN 43 880, UL94V-0 thermoplastic, IP 20 (NEMA-1) Connection - ≤25 mm² (#4AWG) stranded | ≤35 mm² (#2AWG) solid Mounting - 35 mm top hat DIN rail Temperature - -40 to -80 °C (-40°F to 176°F) Humidity - 0% to 90% Approvals - CE, IEC® 61643-1, UL® 1449 Ed. 3 Recognized Component Type 2 Certification Details - UL® 1449 Edition 3 Recognized Component Type 2 Surge Rated to Meet - AANSI®/IEEE® C62.41.2 Cat A, Cat B, Cat C ANSI®/IEEE® C62.41.2 Scenario II, Exposure 2, 50 kA 8/20 μs IEC 61643-1 Class II UL® 1449 Ed. 3 In 20 kA mode Replacement MOV Module - TDS150M150
