Proper bonding is essential to create an equipotential plane between service grounds and equipment during fault and transient conditions. This equipotential plane provides a near-zero voltage differential, and serves to protect people and equipment during these events. The grounding busbar is the most popular bonding product in use today.
- Provides a convenient, single-point grounding and bonding location
- Conductors are welded to the bar using a nVent ERICO Cadweld exothermic connection or are mechanically fastened by using lugs
- Custom bars can be designed and manufactured to customer specifications
Material - Copper

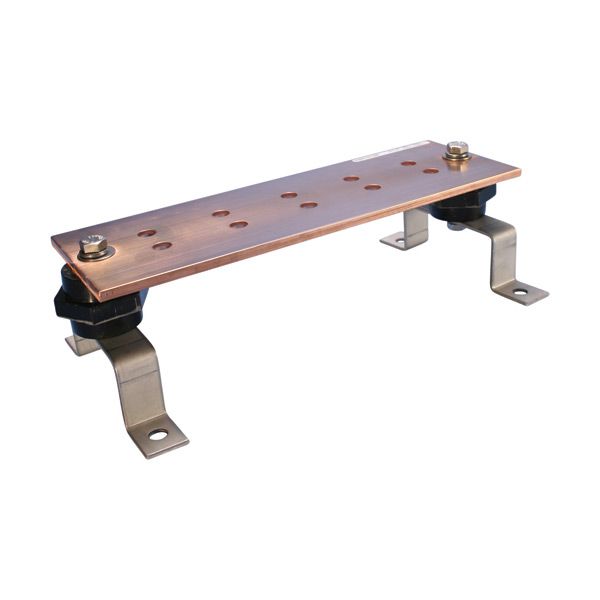

Busbar Configuration - Busbar, Insulators and Brackets
Hole Pattern - JJ
Mounting Hole Size - 11.1 mm
Length (L) - 381 mm
Width (W) - 51 mm
Thickness (T) - 6.4 mm
Tin Plating - No
Pigtail Included - No
Certifications - cULus
Standard Packaging Quantity - 1 pc
UPC - 78285644528
EAN-13 - 8711893097528
